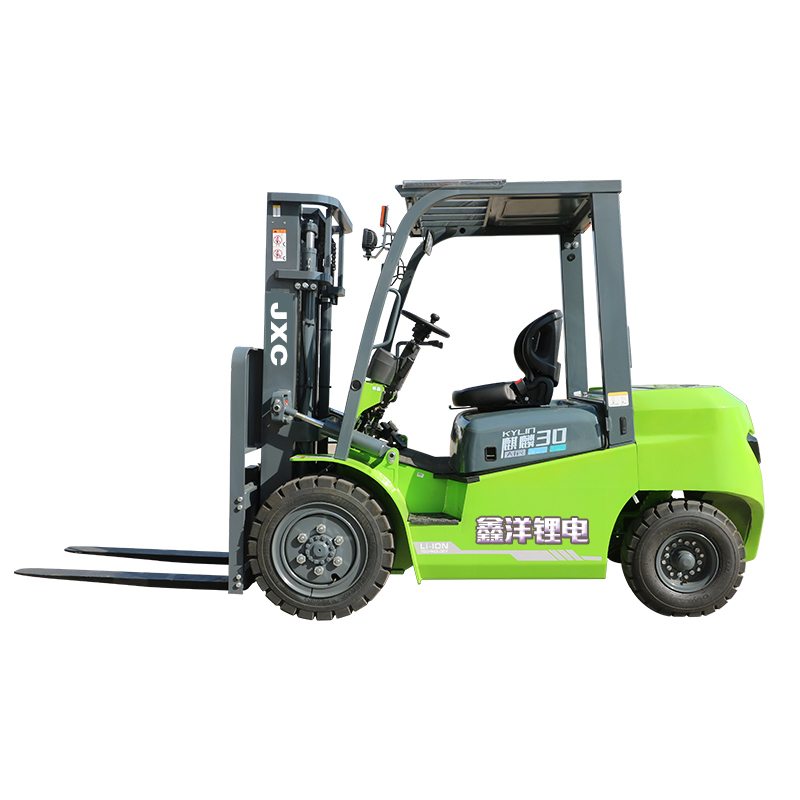

Power form: lithium battery
Approved load: 3 tons
Load center distance: 500mm
Standard lifting height: 3000mm, optional to 6000mm, with a lifting level every 500mm
Free lifting height: 155mm
Standard fork: length*width*thickness 1070*125*45, fork length can be optional 1220/1370/1520/1670/1820
Mast tilt: front 8/rear 10
Minimum turning radius: 2680mm
Minimum right-angle stacking channel width: 4150mm
Minimum right-angle channel width: 2880mm
Minimum ground clearance: 130mm
Top guard height: 2090mm
Front suspension distance: 465mm
Maximum driving speed: fully loaded 14Km/h, empty 15Km/h
Maximum lifting speed: full load 300mm/s, no load 400mm/s
Traction force: 18KN
Maximum climbing ability: 15%
Total length (without fork): 2709mm, full width: 1210mm, maximum lifting height of fork (with shelf) 4260mm
Mast height: 2075mm
Tire model: front wheel 28*9-15-14PR, rear wheel 6.50-10-10PR, wheelbase 1760mm
Wheelbase: front wheel/rear wheel 1005/984mm
Self-weight (no load): 4360KG
Battery: System voltage 80V, lithium battery capacity 230Ah, optional 175Ah, 280Ah, 350Ah
Motor: traveling 16.6KW, lifting 13.5KW
Control mode: AC
Working pressure: 18.5Mpa
Tire type: standard pneumatic tires, optional solid tires
Number of wheels: front/rear 2/2
