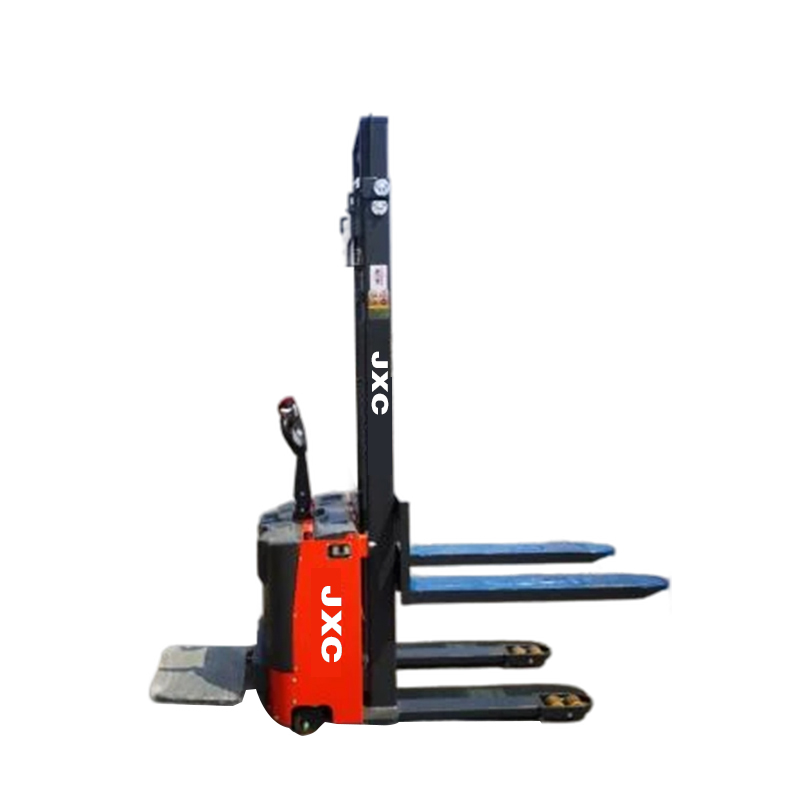

Drive mode: electric
Operation mode: stand-up type
Rated load capacity: 1.5Q (t)
Load center: 600c (mm)
Front suspension distance: 695x (mm)
Self-weight (including battery): 740KG
Battery weight: 2*25KG
Tire type: Polyurethane
Balance wheel size∅*w(mm):∅115*55
Number of wheels, driving wheels, balance wheels/carrying wheels: 1, 4/2
Wheel base, load-bearing end bl1 (mm): 390/515
Wheel base, drive end: b10 (mm): 646
Total vehicle height when the mast is at its lowest point: 2127mm
Lifting height h3 (mm): 3000, optional 1600/2600/3200/3600
Operating position handle lever minimum/maximum height h14 (mm): 1040/1415
Minimum height of fork h13 (mm): 86
Vehicle length l1 (mm): 1890
Body length 12 (mm): 740
Vehicle width b1/b2 (mm): 808
Fork size s/e/l(mm):60/180/1150
Fork outer width b5 (mm): 570/695
Ground clearance m2 (mm) at wheelbase center: 26
Channel width: 1000*1200 Pallet Ast(mm): 2110
Channel width: 800*1200 Pallet st (mm): 2160
Turning radius: Wa(mm):1455
Traveling speed, fully loaded/unloaded km/h: 4.2/4.5
Maximum gradient: full load/no load %: 3/6
Lifting speed: full load/no load mm/s: 90/130
Descending speed: full load/no load mm/s: 105/100
Braking type: electromagnetic braking, drive motor power KW: 0.75
Lifting motor power KW: 2.2
Battery voltage/capacity V/Ah:2*12/120
Battery weight KG: 2*35KG
Drive control type: DC speed control
Noise level (dB(A))<70
Steering type: mechanical steering
